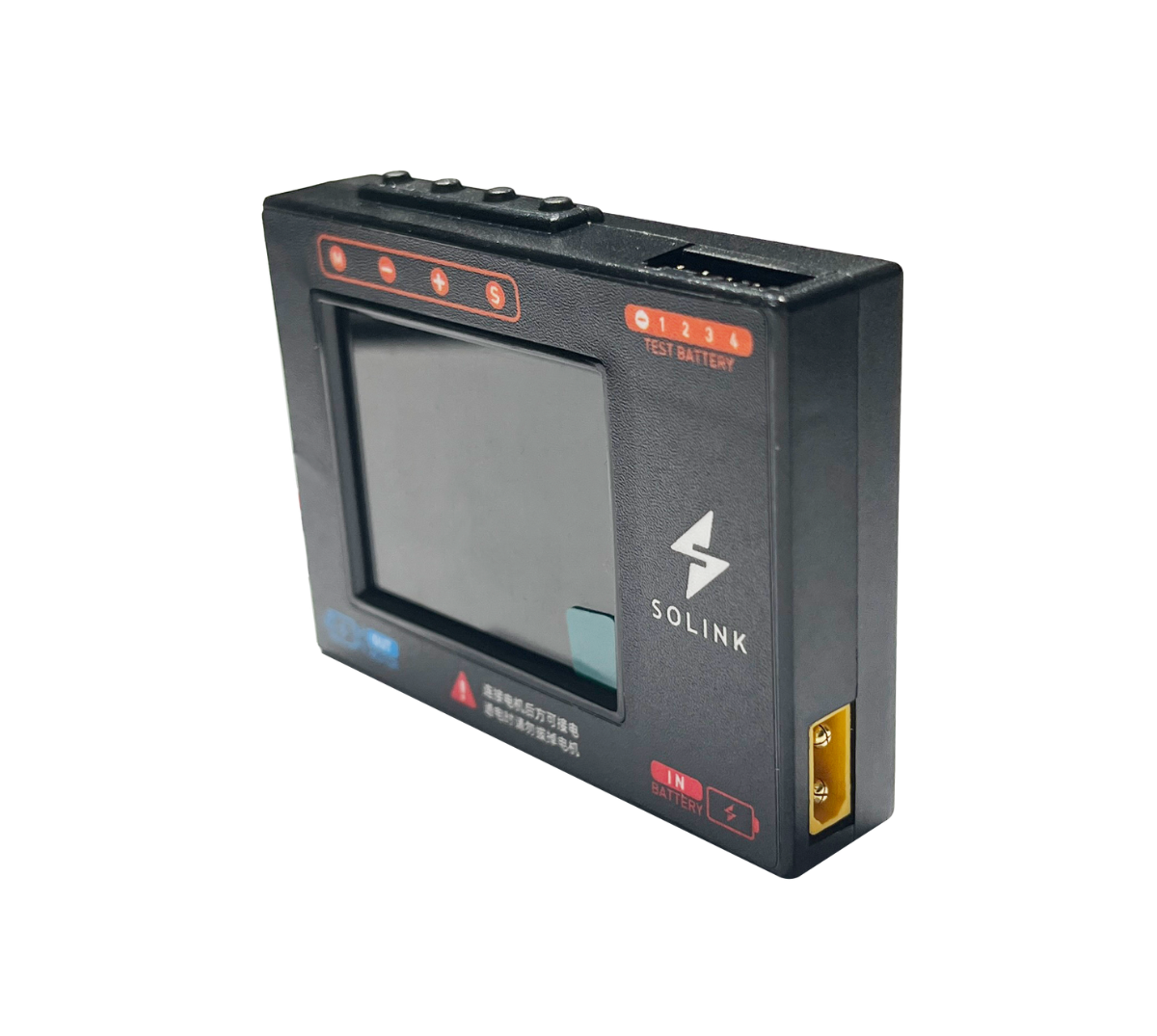

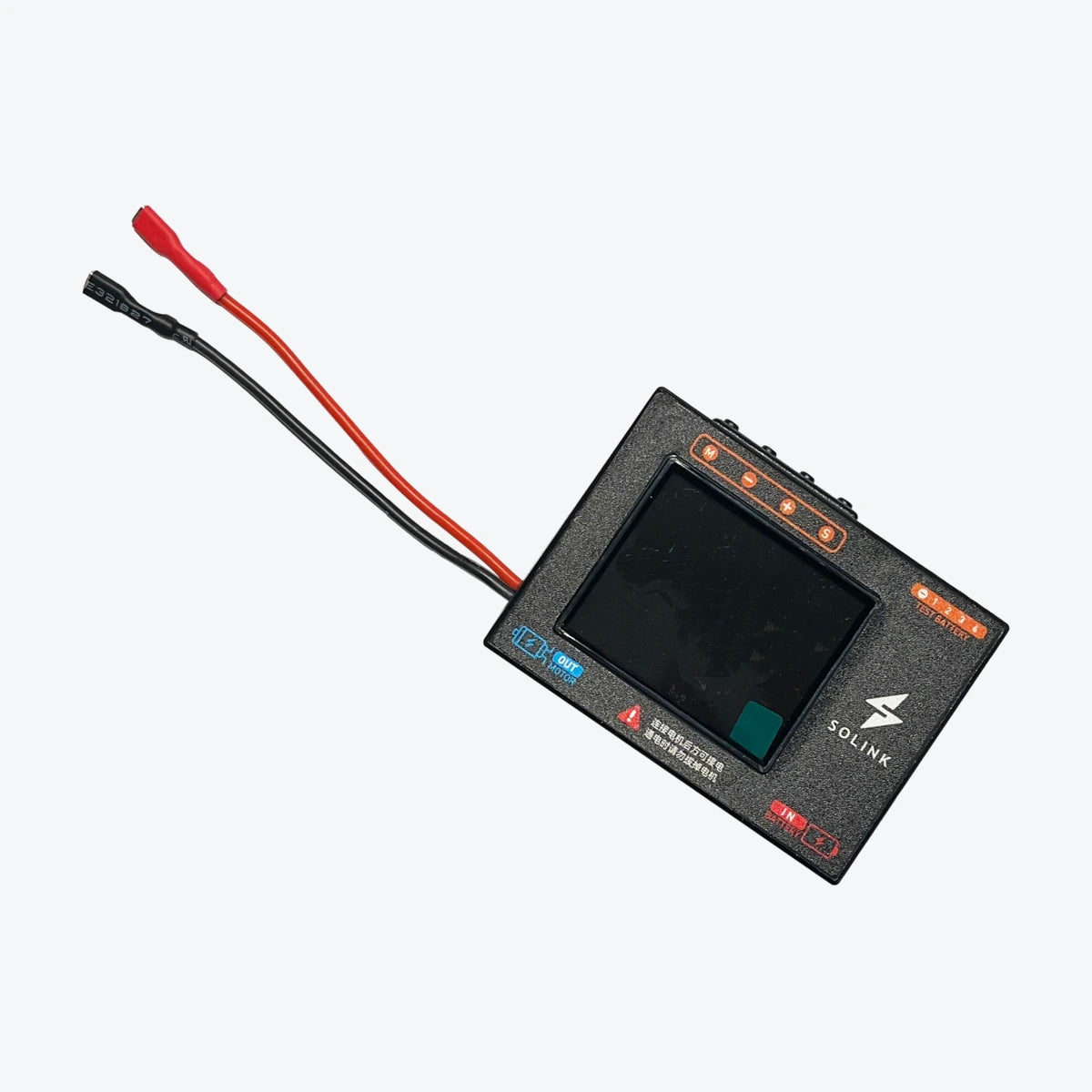

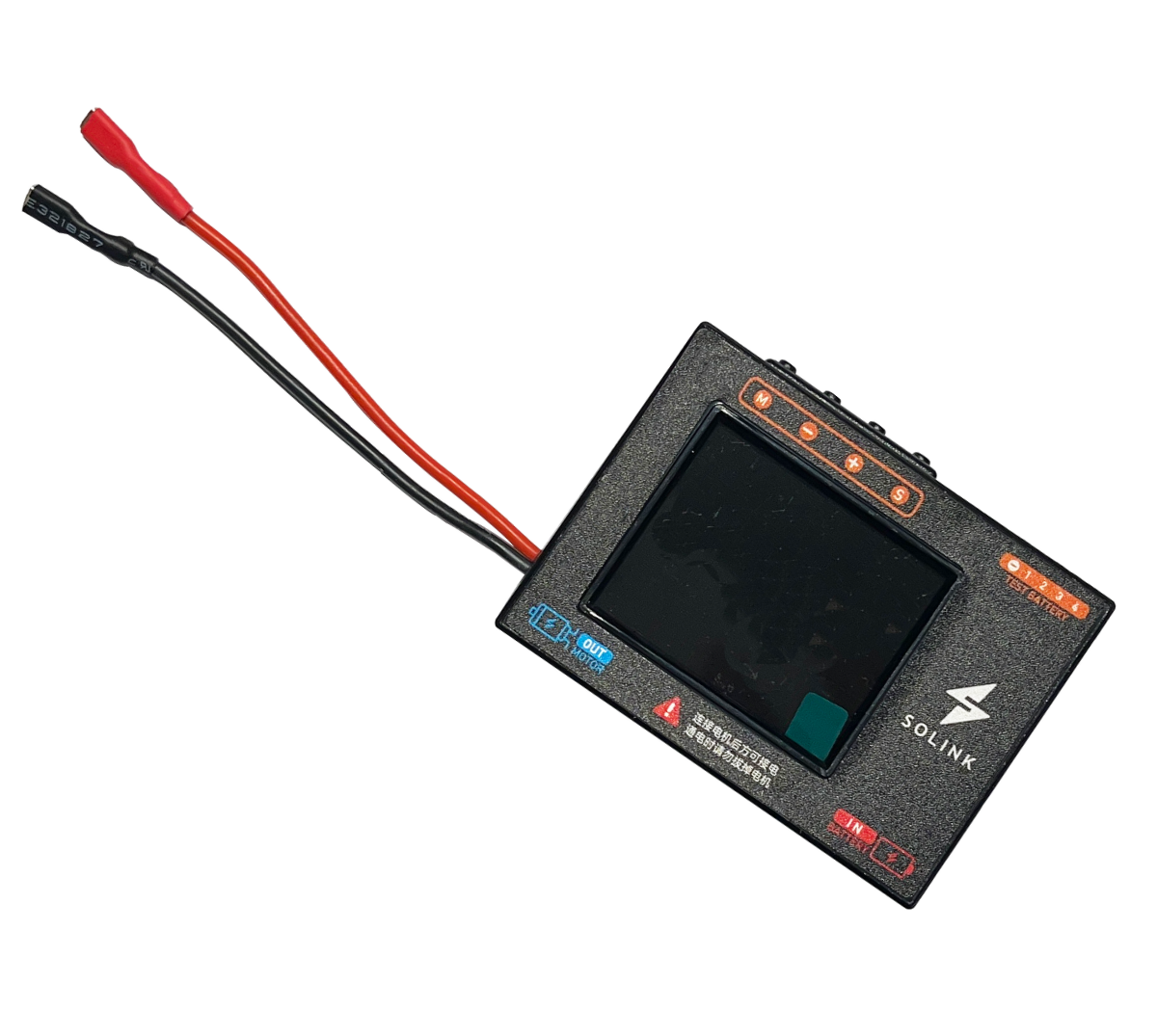

SOLINK Digital Programming Board For Solink V5 Motor

SOLINK Digital Programming Board allows precise speed adjustments, offering customizable settings for enhanced performance and control in your gel blaster.

SOLINK Digital Programming Board Setup Guideline:

• Motor speed can be adjusted between 10k-46k rpm with 1k rpm increments with this digital programming card (Default value: 46k rpm ,11.1v)Please Note: Digital programming board  only work with V5 Brushless motor (Click here to see more), not workable for our other models either other brands motor.

• The starting torque of the motor can be adjusted by current change. (Default value:60%)

• It can also be used to check the health of the battery, and automatically detects the battery voltage and percentage of remaining charge after the battery is linked

Button Description:

• M Button: Short press to select the item to be set, long press to quickly reconnect when disconnected from the motor.

• –  Button: Short press to decrease the value of the selected item, long press to quickly decrease the value of the selected item.

• + Button: Short press to increase the value of the selected item, long press to quickly increase the value of the selected item.

• S Button: Long press to save the settings to the motor.

Attention:

1) Some malfunctions, poor contact, or unexpected situations may cause the motor to rotate unexpectedly. Therefore, the motor must be securely fixed before using this product.

2) The motor must be reliably connected to the cable of the board before the board can be powered on, otherwise it may cause accidental rotation of the motor.

3) The battery voltage used to power the programming board must be higher than 7.4V, otherwise it may cause the motor to rotate unexpectedly.

4) After the settings are saved, the programming board will self-disconnect and disconnect from the motor. If you want to reset it, you must power it on again or press and hold the M button to reconnect.

5) While in the setting menu, do not disconnect the motor wires, otherwise it may cause the motor to rotate unexpectedly.

6) If the maximum current rating of the ETU is lower than the defined starting current of the motor,we are NOT responsible for the damage it might caused.

7) Please confirm the correct polarity before installation. Do not reverse the positive and negative connections. Damage caused by incorrect polarity is not covered under warranty.

General Safety

Keep blasters, gel balls, gas, batteries, chargers, magazines, parts and tools away from children and unauthorised users.

Gel Ball Safety

Gel balls are not edible and must never be eaten or swallowed. Keep both dry and hydrated gel balls away from children and animals. Seek immediate medical advice if swallowed.

Clean up spilled gel balls immediately, as they may create a slipping hazard. Do not place gel balls in the ears, nose or other body openings.

Store gel balls in a sealed container away from heat and direct sunlight. Dispose of them responsibly and do not release large quantities into drains or the environment.

Gas Safety

Gel blaster gas is flammable and stored under pressure. Keep it away from flames, sparks, hot surfaces and direct sunlight. Do not smoke while handling or filling gas.

Use gas only in a well-ventilated area. Do not inhale the gas, puncture or burn the container, or leave it inside a hot vehicle.

Avoid contact with escaping liquid gas, as it may cause cold burns. Never aim a gas container or magazine valve towards your face or another person.

Battery Safety

Do not crush, puncture, modify, short-circuit or expose batteries to water, fire or excessive heat.

Never use a battery that is swollen, leaking, damaged, unusually hot or producing an unusual smell.

Store batteries in a cool, dry place away from direct sunlight and flammable materials. Protect battery terminals from contact with metal objects.

Charger Safety

Only charge batteries with a compatible charger designed for the correct battery type and cell count.

Never charge a battery unattended or overnight. Charge it on a stable, non-flammable surface in a cool, dry and ventilated area.

Stop charging immediately if the battery becomes swollen, damaged, unusually hot or produces an unusual smell.

Magazine Safety

Keep magazines pointed away from your face and other people while loading, filling or releasing pressure.

Keep gas magazines away from fire, heat and direct sunlight. Do not puncture, crush or deliberately heat a gas magazine.

Do not look directly into the feed opening, gas valve or outlet. Keep fingers away from moving feed mechanisms and valves.

Parts and Accessories Safety

Ensure the gel blaster is unloaded and all batteries, magazines and gas sources are removed before installing, removing or adjusting parts.

Wear suitable eye protection when handling springs, pressurised components or parts that may move unexpectedly.
